Product Details:
|
| How To Install: | Hanging On The Wall | Appearance Material: | Stainless Steel Or Metal |
|---|---|---|---|
| Heat Power (KW): | 20/24/32/42KW OPTIONAL | Gas Style: | NG/LPG |
| Surface Color: | WHITE OPTIONAL | Discription: | USE NG/LPG WALL HUNG BOILER OR HEATER |
| Difference Gas Pressure(pa): | NG2000pa/LPG2800pa | Showing: | LED Displayer Optional |
| Heating Efficiency(%): | ≥90 | ||
| High Light: | 3C Wall Mounted Gas Boiler,Wall Mounted Gas Boiler ISO14001,Modern Style Ng Lpg Gas Boiler |
||

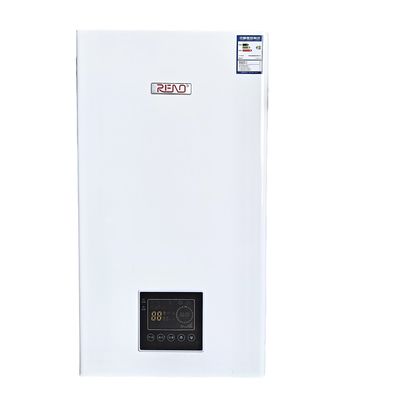

WALL MOUNTED INSTALLATION AND 3C CERTIFICATION MODERN STYLE GAS BOILER USE NG OR LPG
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
8,Fault self-diagnosis function,convenient maintenance
9,Thermal efficiency can reach 94%,low carbon environmental protection
10,Unique intelligent fault operation, improve the operation of the product
11,Unique energy-saving design,save electricity above 30%
12,The main parts adopt the world first-class brand,product performance is more outstanding
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB20-40-A(F3) |
|
SPECIFICATIONS |
A20-40-F3/B20-40-F3 |
|
RATED INPUT POWER(KW) |
32-40 OPTIONAL |
|
RATED OUTPUT POWER(KW) |
18-36 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
8-16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 30-41 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

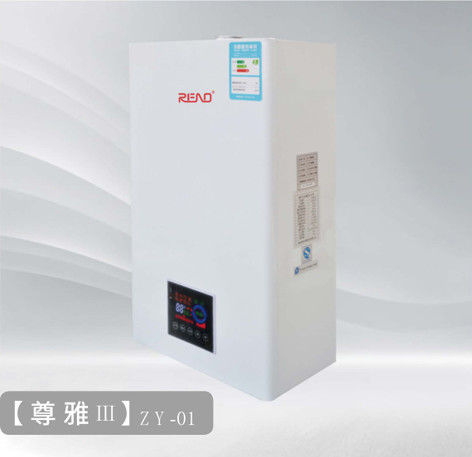

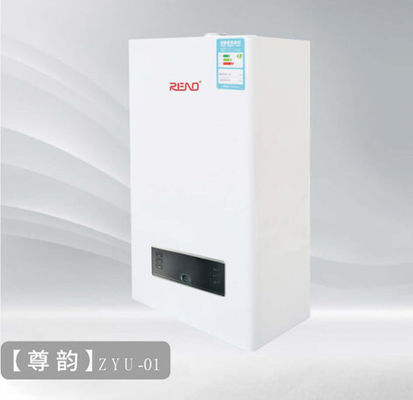

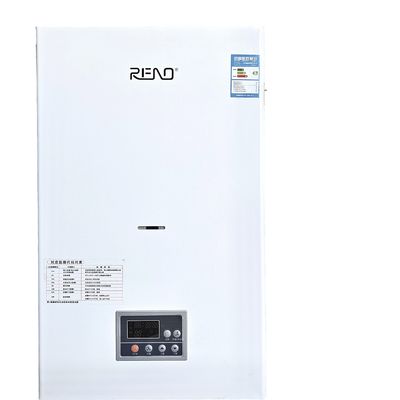

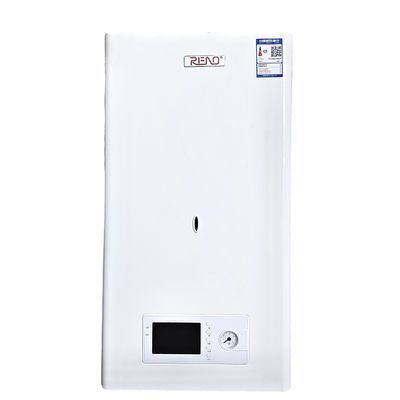

PRODECT DISPLAY
The role of water pressure switch: In order to ensure the normal operation of the heating system, the system is filled with water, and maintain a certain pressure. The water shortage protection can be achieved by detecting the system pressure through the water pressure switch.
The role of the fan: The exhaust gas produced during combustion is discharged outdoors, and the fresh air outside is pumped into the combustion chamber, so that the combustion chamber is kept in a state of micro negative pressure and the flue gas is prevented from spreading indoors.
The role of the burner: It can ensure the normal combustion of gas, which from the nozzle high pressure injection into the burner inside the Venturi tube, causing the pressure in the tube down. Air (the first air) is inhaled and mixed with gas, Which will rush out gas hole to burn. The air that is still insufficient after the first mixing is partially mixed by the second mixing of air around the fire to form a complete combustion.
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
Q:Are you trading company or manufacturer ?
A:We are factory,located at Qingdao City, China. Welcome your visitanytime!
Q:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Exceptweekend and holidays).lf the quantity is not too much, we can offerfor free but delivery cost should be collected. Different products have different MOO, we can discuss step by step.
O:What is the lead time?
A:Usuallv,for small order, our lead time is 15-30davs.If bulk order isover 10000pcs,lead time needs to be discussed step by step.We havestock for most ofour models.
Q:What is your payment terms?
A:We accept T/T and L/C. Others we can dicsuss together.lf you canpay RMB, it will be better.
Q:Do you have a guarantee of your product quality?
A:Now our products are produced in strict quality control system anddefective rate is un-der0.01%. For the defective products, we cansend new ones to replace along with your new order.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPSDHL.TNT.FEDEX and ect). Please confirm with us before placing orders.
Q:What is your major product?
A: Our major product is Wall hung gas boiler,Condensing gas heatingboiler.Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances.
