Product Details:
|
| How To Install: | Wall Mounted | Housing Material: | Stainless Steel |
|---|---|---|---|
| Power (KW): | 26/32/40 | Gas Style: | NG/LPG |
| Color Shows: | WHITE | Product Name: | Wall Mount Gas Boiler |
| Gas Pressure(pa): | 2000/2800 | Displaying: | LED Displayer Optional |
| Heat Efficiency(%): | ≥90 | ||
| High Light: | Grundfos Pumps Gas Combi Boilers,Gas Combi Boilers Wall Hung 26kw,3c Wall Hung Gas Hot Water Boiler |
||
Wall Hung Gas Hot Water Boiler With Breakdown Self Check Function And Use Wilo Or Grundfos Pumps
GAS WALL HANGING BOILER INSTRUCTIONS
1. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
2. Comfort
Ultra-quiet operation•more comfortable
3. Convenience
Touch control•more precise
4. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
5. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL No. | L1PB26/32/40-A(M1) |
|
SPECIFICATIONS |
A26/32/40-M1/B26/32/40-M1 |
|
RATED INPUT POWER(KW) |
26/32/40kw |
|
RATED OUTPUT POWER(KW) |
23.5/28.8/36kw |
|
HEAT EFFICIENCY(%) |
≥90% |
|
RATED VOLTAGE FREQUENCY(V/Hz) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800Pa |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
10/13/16 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 33/38/41kg |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

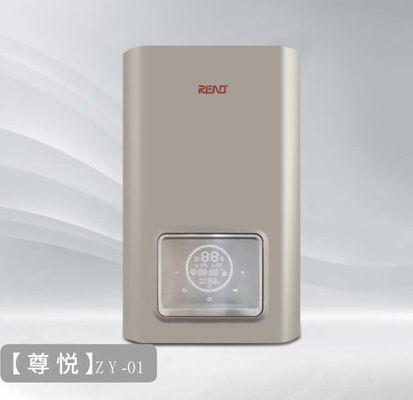

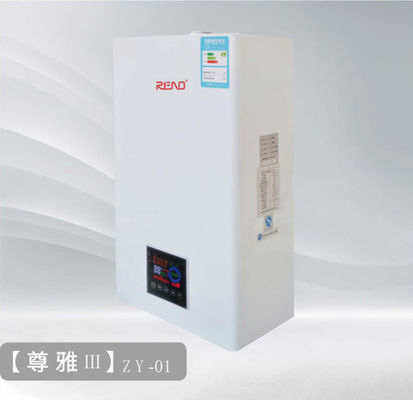

PRODECT DISPLAY
