Product Details:
|
| Installation: | Wall Mounted | Shell: | Stailess Steel |
|---|---|---|---|
| Gas Pressure(pa): | 2000pa/2800pa | Gas Type: | NG/LPG |
| Color: | WHITE | Product Name: | Wall Hung Boiler |
| Power (KW): | 20-40kw | Display: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥90 | ||
| High Light: | Home Wall Hanging Gas Furnace 40kw,Lpg Water Boiler ISO9001,Wall Mounted Lpg Water Boiler 40kw |
||
NEW STYLE WALL MOUNTED GAS BOILER HOME USE NG OR LPG CASING TYPE OR PLATE TYPE HEAT EXCHANGER BOILER
GAS WALL HANGING BOILER INSTRUCTIONS
1. The temperature can be set by yourself: when the collective heating temperature is low, it feels too cold, and when the
temperature is high, it feels too hot. The room temperature of the heating furnace can be adjusted to provide comfortable
heating in winter
2. Fast hot water output: the water heater is installed in the bathroom, shortening the water delivery journey, saving more
water and gas
3. Easy installation: the radiator system heats up quickly, the heat distribution on the ground is even, the heat storage
capacity is strong and does not occupy indoor space, and the service life is long
4. Safe and Reliable
With 21 kinds of safe protection•Low failure rate
5. Comfort
Ultra-quiet operation•more comfortable
6. Convenience
Touch control•more precise
7. Environmental protection
Eenrgy saving and environmental protection•Follow the trend
8. After sale
7*24 after-sales service,worry free
TECHNICAL DATA OF GAS WALL HANGING BOILER
| MODEL | L1PB24-A(F3) |
|
SPECIFICATIONS |
A24-F3/B24-F3 |
|
RATED INPUT POWER(KW) |
24 |
|
RATED OUTPUT POWER(KW) |
21.6 |
|
THERMAL EFFICIENCY(%) |
≥90 |
|
RATED VOLTAGE FREQUENCY(V/Hz/W) |
220/230/50 |
|
GAS TYPE |
NG/LPG |
|
GAS PRESSURE(Pa) |
2000/2800 |
|
TEMP.RANGE OF HEATING WATER(℃) |
DHW:30-60 HEATING HOT WATER:30-80 |
|
△T=30℃ HOT WATER SUPPLY(KG/MIN) |
9.5 |
|
APPLICATIVE WATER PRESSURE(MPA) |
0.02-0.8 |
| DIMENSION(HIGH*WIDE*THICK) | 740*410*315 |
| WEIGHT(KG) | 33 |
| DIAMETER OF SMOKE PIPEφ(COAXIAL) | φ60/100 |

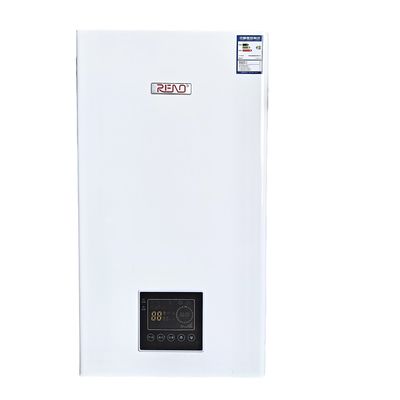

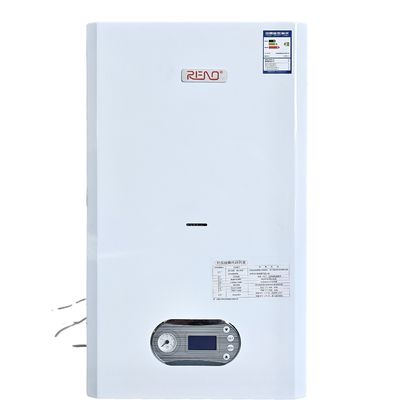

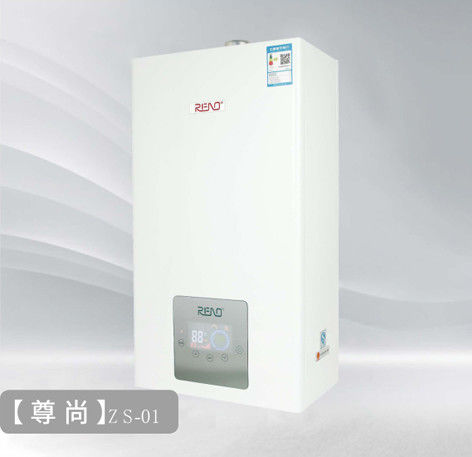

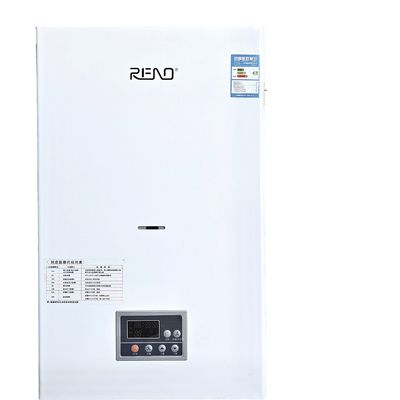

PRODECT DISPLAY
ABOUT US
Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.
Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.
Contact Person: Mr.Chen Zong Hua
Tel: +8618853255638
